Fully Overhauled Honda CB400N, ND & T | CM400 | CB450DX | Superdream Stator


Part Number: CB4-Gen2 Category: Tags: , , ,

Product Downloads


Overhauled part supplied on an “Exchange” basis IE you must first send us your failed item.

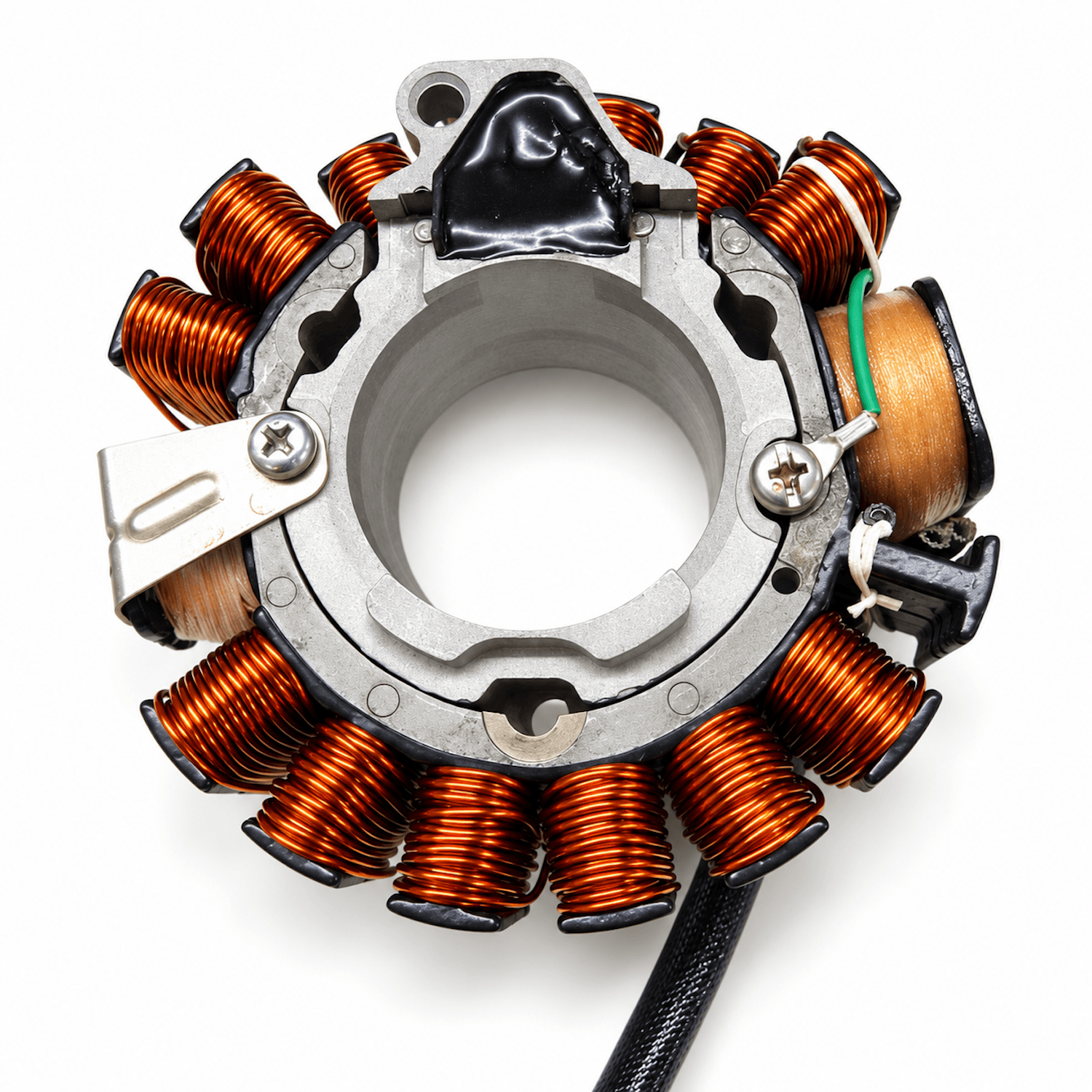

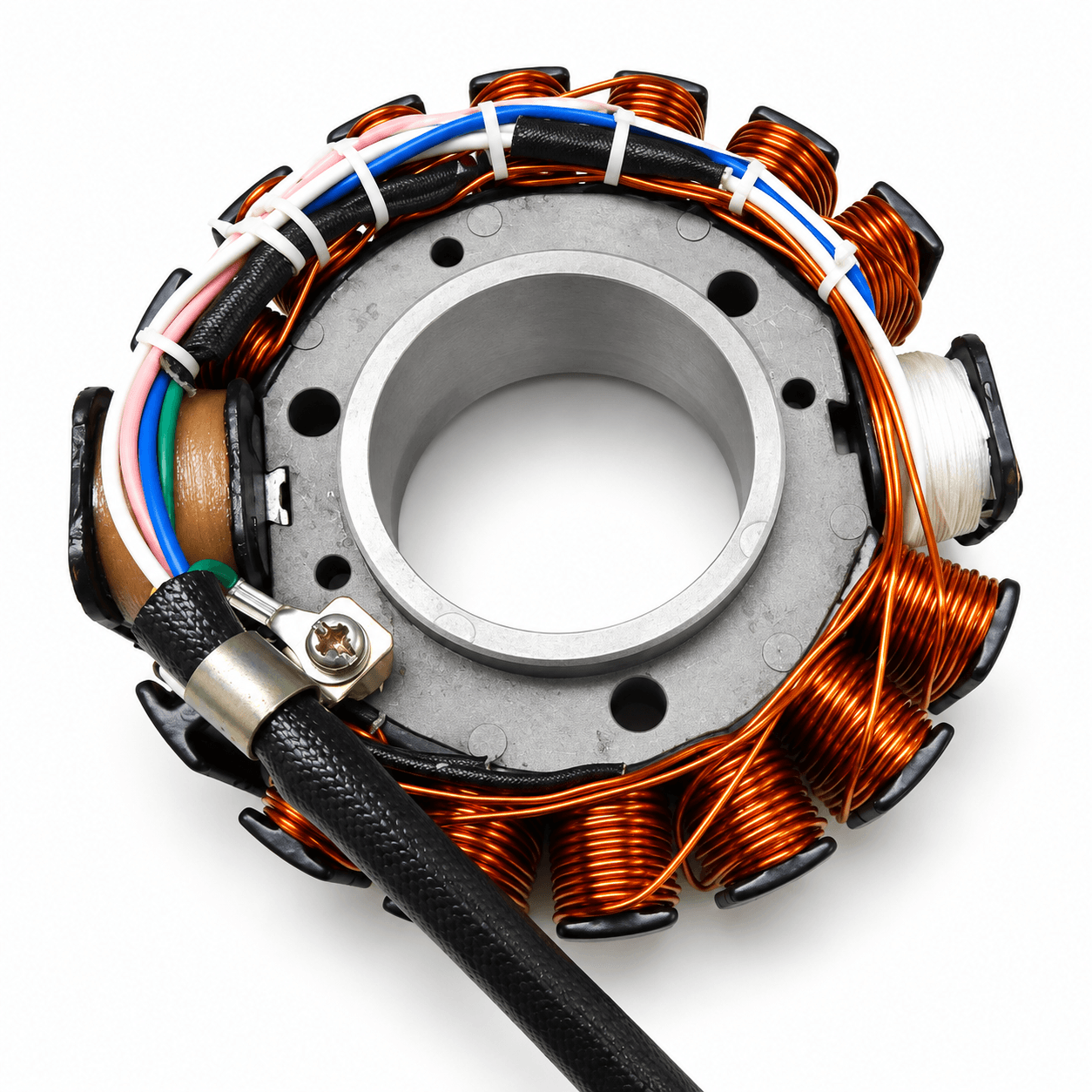

Fully overhauled Honda stator for CB400 Superdream, N, ND, T, CM400, & CB450DX models

Genuine Honda part that has been stripped to bare metal, the core checked then if it passes re-insulated and rewound to OEM specifications. New leads are included.

There are 2 standards of alternator windings; 1) derated and 2) full power. The derated versions had significantly fewer alternator windings. Unless requested you will receive the full power version with windings identical to those in the pictures.

Not included are pick-ups (low or high speed). For repaired high speed pick-ups see part number CB4-HSP & CB4-LSP.

Please note, this is a full restoration back to OEM specification for owners who wish to have the highest standard possible and maximum attention to detail. All old insulation has been replaced with new, including coil formers. We only use Propriety materials from UK or EU suppliers in our workshops.

One year warranty

Additional Information

Weight1.25 kg
Country Of Origin
