XT500 Universal Wiring Set – All Points Ignition Models


Out of stock

Product Downloads

Wiring Loom Fitting Guides


Simple all in one wiring kit to replace old, damaged wiring. Suitable for all points ignition XT500 models

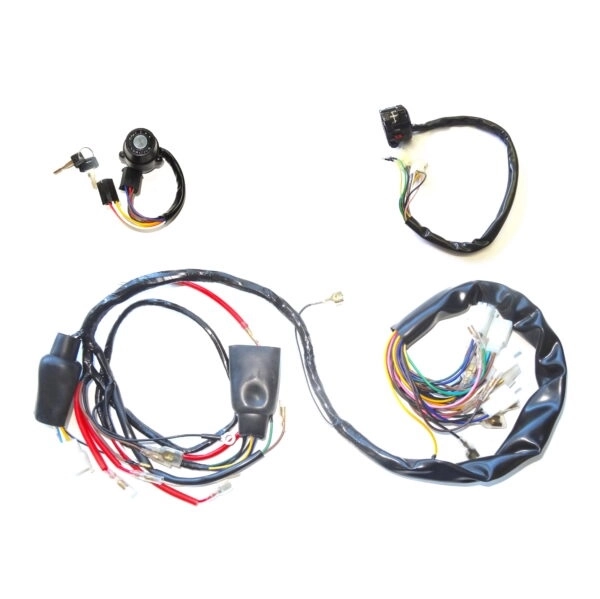

Neat and simple solution to wiring loom issues. Replacement electrical kit comprising:- main wiring loom, left hand handlebar switch & ignition switch.

By replacing the switches and the loom this kit ensures all standard lights and electrical parts will work on all machines that originally left the factory with contact breaker ignition, regardless of market or year variation.

Note: does not fit US models G & H (1980-81) where Yamaha CDi was fitted.

✓Brand new wiring loom

✓New main ignition & left hand switches

✓Opposite connectors and crimp kit included, plus a bullet connector kit (part number TK2 ).

✓Compatible with Rex & Kedo 12 volt conversions

✓Compatible with Rex & Kedo electronic ignitions

It is likely this kits will deviate in detail and not be 100% accurate for a particular year of manufacture. This causes no real problem other than the parts fitted may vary slightly to whats shown in the parts book. The electrics will work as normal in all cases.

Additional Information

Weight0.85 kg
Country Of Origin
