Description

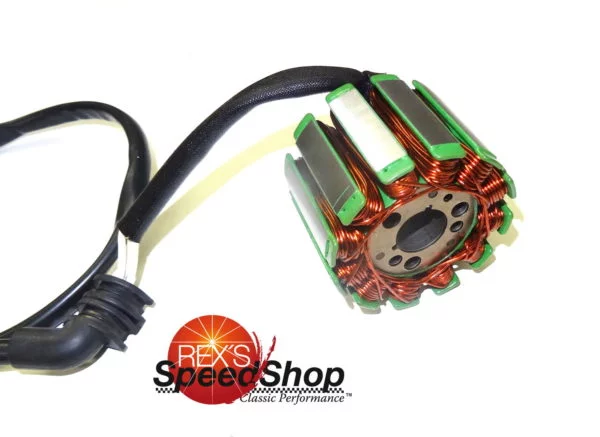

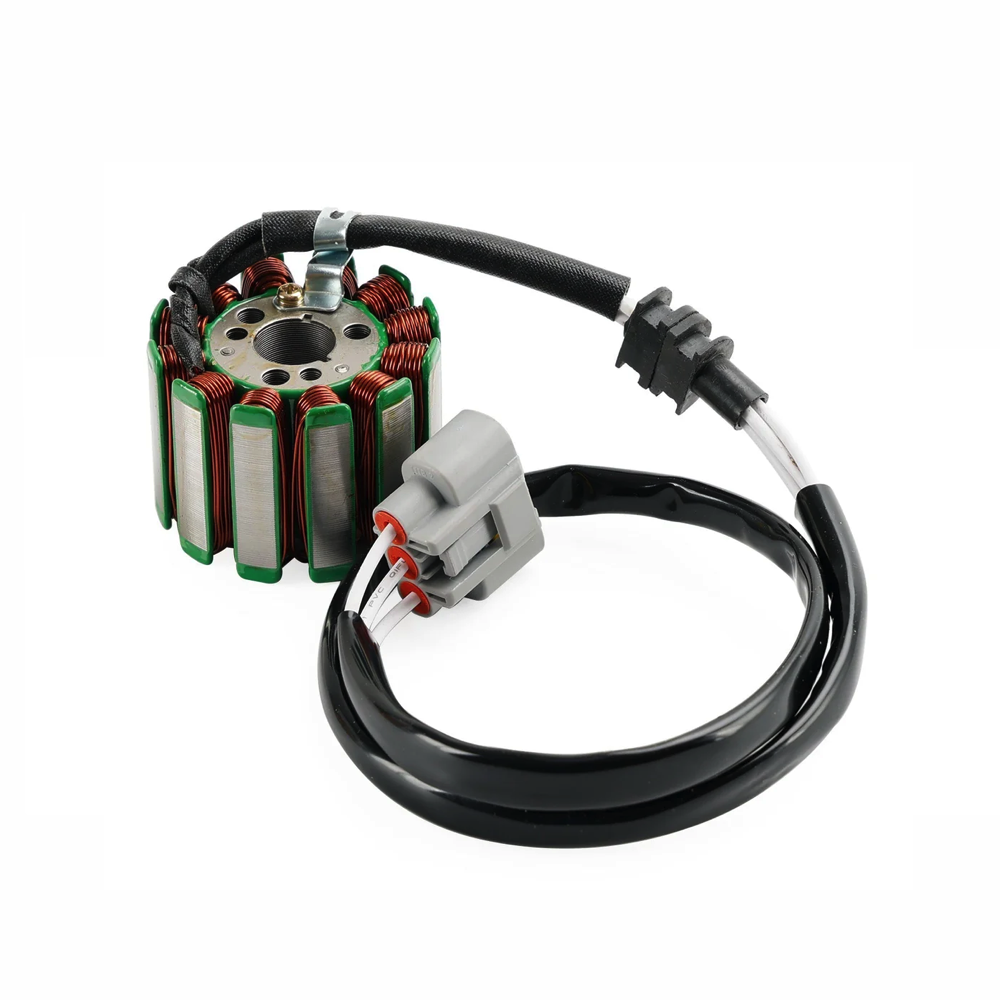

Replacement stator for Yamaha FZ8, FZ1, YZF R1, replacement for p/n 2D1-81410-10-00.
Dimensions:
Interior diameter: 18mm
Exterior diameter: 68mm
Thickness: 42mm
Length of wires stator to grommet: 125mm

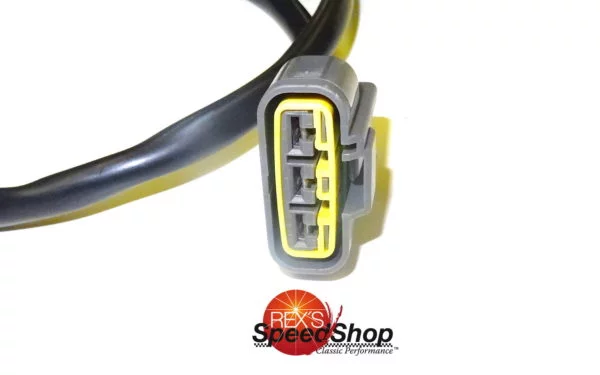

Length of wires grommet to plug: 500mm
Model P/N Year Engine
| FZ1 | 2006 | 998cc |
| FZ1 | 2007 | 998cc |
| FZ1 | 2008 | 998cc |
| FZ1 | 2009 | 998cc |
| FZ1 | 2010 | 998cc |
| FZ1 | 2011 | 998cc |
| FZ1 | 2012 | 998cc |
| FZ1 | 2013 | 998cc |
| FZ1 | 2014 | 998cc |
| FZ8 | 2011 | 779cc |
| FZ8 | 2012 | 779cc |
| FZ8 | 2013 | 779cc |
| YZF-R1 | 2004 | 998cc |
| YZF-R1 | 2005 | 998cc |
| YZF-R1 | 2006 | 998cc |
| YZF-R1 | 2007 | 998cc |
| YZF-R1 | 2008 | 998cc |
