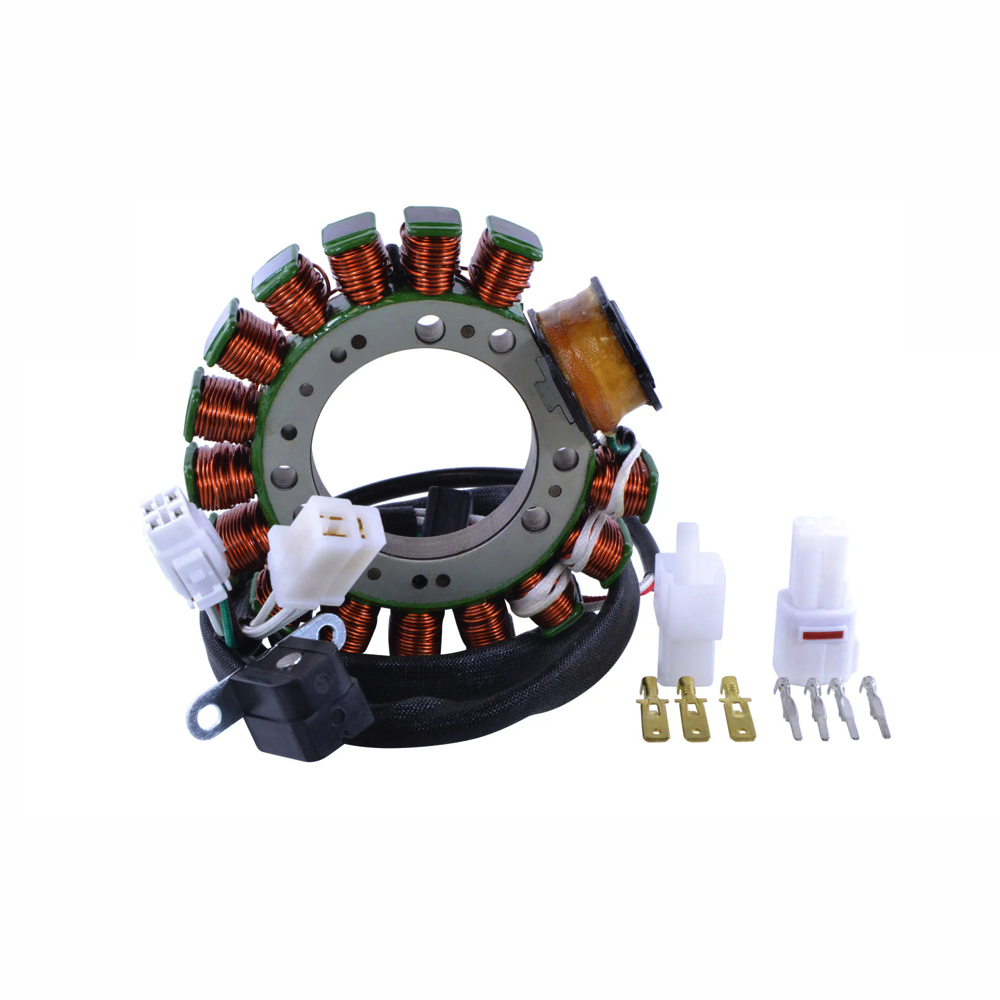

Replacement Stator Yamaha YFM 350 Big Bear | Wolverine

£150.00 Incl. VAT

In stock

Part Number: RM01036 Categories: , , Tags: ,

Description

Replacement stator for Yamaha YFM 350 Big Bear 1997-1999,  YFM 350 Wolverine 1995-2001.

Please confirm the size of your old stator as there are different possibilities for Woverine models

Inside Diameter : 52 mm
Outside Diameter : 115 mm
Thickness measured through centre : 40 mm
Fitting guide:

YFM 350 Big Bear 1998 -1999
YFM 350 Big Bear 2×4 1999 -1999
YFM 350 Big Bear SE 1997 -1997
YFM 350 Wolverine 2000 -2001
YFM 350 Wolverine California 2000 -2000



Reference OEM part numbers:

4KB-85510-10-00
4KB-85510-11-00
4KB-85510-12-00



Resistance tests

Alternator : White Between each White = 0.9 ohms+/-5%
Alternator : White to Ground = O.L. ON DISPLAY
Source 1 : Green to Black = 300 ohms+/-5%
Pick up 1 : Red to White = 500 ohms+/-5%

Additional Information

Weight 1.1 kg
