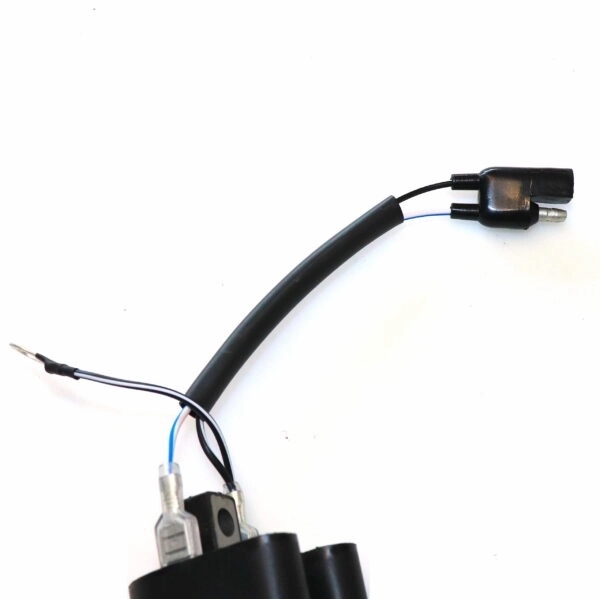

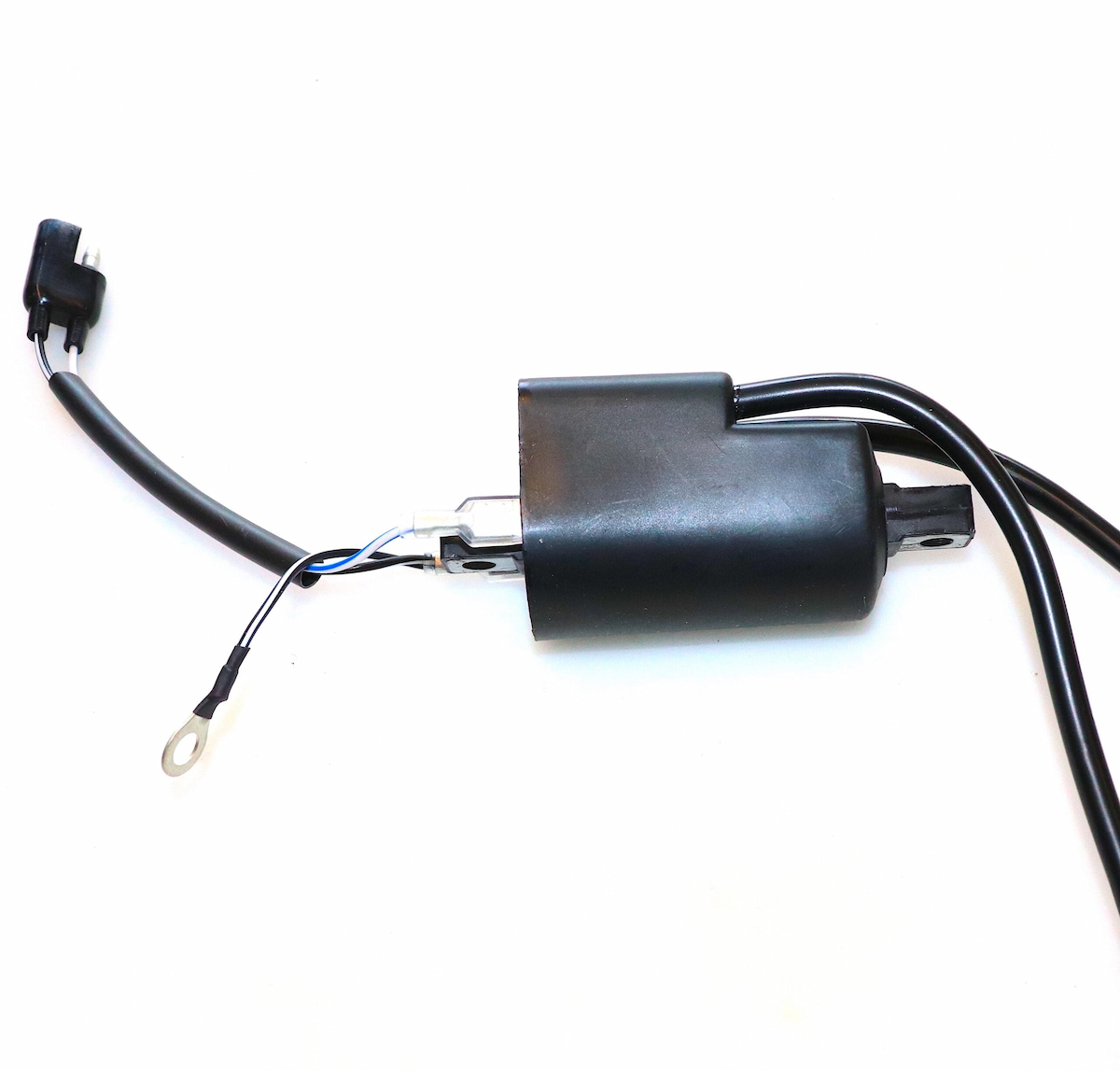

Replacement CDi coil for Suzuki p/n 33410-15321. Twin lead ignition coil with removable HT leads. Applicable to CDi equipped GT185, GT250X7 and GT500.
Resistance: primary 0.6 – 0.8 Ohm, 14K ohm secondary. 90mm between mounting hole centres.
One year warranty.
Important: many vendors mistakenly sell 4-stroke coils for GSX models for the Suzuki CDi (PEi) ignition. If the primary resistance is near 2.0 ohms that is a 4-stroke engine TCi ignition coil (not PEi). The wrong coil will stress your CDi and invalidate any warranty on other ignition parts.
Caution: Some Suzuki shop manuals have a misprint. The primary resistance should be 0.6 ohms for PEi coils. A 4.0 ohms resistance is for points ignition coils.
