Full Race DT250 D&E Ignition – Mono Shock Bikes


In stock

Product Downloads

RMK Electronic Ignition Kit Fitting Guides


Rex’s Dual Power Ignition.  More spark power than any other self generating ignition available today.

Not for road use.

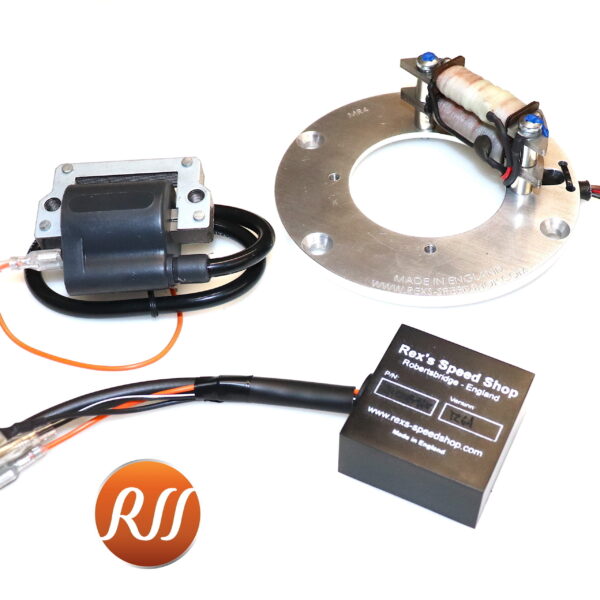

Full Race system unique to Rex’s with our “Dual Power” source coils set that gives up to three times more spark power than other available self generating ignitions. The “Dual Power” stator was developed for stronger ignition in standard, high compression and high revving engines, even at RPMs over the standard red line.

Our focus is always on performance. Full Race stators also have adjustment slots to allow fine tuning. We build our electronic ignition modules in-house and tailor them precisely to each model. You will not find generic ‘one size fits all’ universal electronics in Rex’s kits!  Each system comes with a dynamic ignition timing curve tuned specifically for the model it is intended for.

As standard Full Race systems are supplied as ‘ignition only’ that need no other wiring on the machine. They come with no lighting or charging but our billet stator will accept a single, stock 6V lighting coil* Full electronic timing and control, replaces points.  12 Volt versions are available, see our other ignition kits.

Requires flywheel F1T350 – Check first what is on yours before ordering, mistakes are expensive to rectify!

Fits: DT250D & E 1977-78 with points ignition.

•    Highest output self generating ignition available – no other system comes close to the spark power.

•    Adjustable stator AND model specific ignition timing curve gives an unbeatable combination.

•    The billet stator accepts a single stock 6 volt lighting coil*.

•    Uses the standard flywheel for low vibration & tractability.

•    Best for starting hot or cold, sparks from 150 RPM.

•    New high power HT coil included

Capable of powering twin spark plug heads at full power, unlike other systems that lack sufficient power to do this.

*Only works where one single lighting coil is used – remove your flywheel and check first. Yamaha modified generators under service bulletins so you must see what system is on your machine, we cannot look for you.

Additional Information

Weight0.9 kg
Country Of Origin
