E3AR | E3A | E3D 36 Watt Dynamo Repair Kit 6V


In stock

Part Number: DYN-RK9-6V Categories: , Tags: , , , , ,


Lucas E3AR, 6 volt dynamo overhaul kit for dynamos; 20017A/B, 200430, 200122, 200120, 200278 & 200364.

UK made on original Lucas tooling. Armature threaded, tapered shaft, 157mm long, single keyway, original P/N 200370.

Supplied with the correct magneto type bearings (the more common seal type shown)

6 volt armature p/n 2003770, tapered, 157mm, single keyway (UK)

6 volt field winding (UK)

Brush set (UK)

Magneto type drive end bearing LU189289 (EU)

Magneto type commutator bearing  LU189284 (EU)

1 x Pole shoe screw (UK)

Reproduction of Lucas dynamo service book (for the E3L &E3N dynamos but still useful reference).

We have a great deal of experience with dynamos. For trouble free 6 or 12 volt operation with good output and without causing the armature to over-heat we recommend our UK made, solid state regulators for positive or negative earth machines. These can be swapped from 6 to 12 volts so you only need to chose the correct earth polarity.

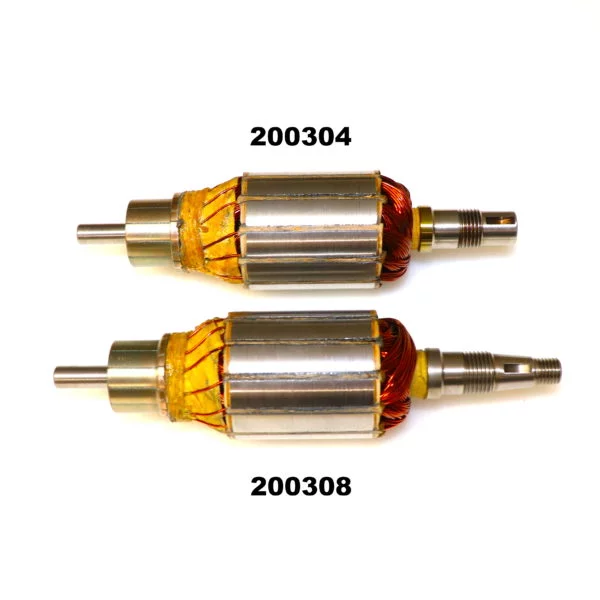

Fitted to many models so check your manual and the armature in the picture.

Additional Information

Weight1.1 kg
Country Of Origin
